2012.03.08 Thursday

JJ.s







2011.05.24 Tuesday

Shop


SERVICE/REPAIR/CUSTOM WORK











2011.04.01 Friday

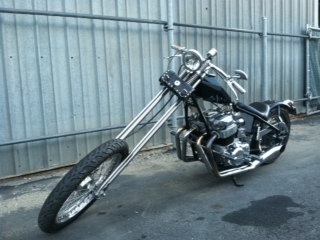

CB Chopper

Yeah yeah yeah... I know it's a HONDA. But it's still a 70's chopper for sure if you ask me! We just got this rice burning machine and I had to ride it NOW! So I did NOT inspect anything before the test ride.... That was smart.....

十分存じております。ハーレーではないですね。ハーレーのみがチョッパーと云う方もいらっしゃると思います。フリーカントリーですので、ある意味これこそ70年代チョッパーと云う考えもありでしょう?とりあえずイカしたチョッパー入庫したので思わず飛び乗りフリーウェー91に!!


Well I just got on freeway 91 and headed East. As soon as I merged on ramp, I hit small bump and I felt weird vibration on front end. Hey! it's a chopper! That did not scare me much not just yet.. When I was doing about 60 miles/hr, I hit bigger bump twice in a row, just like bang bang!! Once it hit bump, front drum brake locked up! And when the front tire hit the ground it skid. I shit you not, I thought I was going down. You know it's all slow motion... It's amazing what come's across in such a short time. I already decided if I hit the asphalt, I will roll with it just like my hero Evel Knievel said.


I just hold on to the handle bars tight and front wheel will hit the ground and skid, squeak-skid-squeak-skid-squeak!!!
I was very fortunate, I kept rubber side down!! I know, I know, it would have been awesome
if I ate shit!!

フリーウェーに飛び乗った勢いは良かったのですが、加速車線?(合流する前ね)小さな段差に乗ったとたん
不愉快な振動がフロントエンドに?? まあチョッパーですので、大丈夫、大丈夫 前CAのガバナー宜しく
自分に言い聞かし走り続けます。
ちょうど60マイル位で気持ちよく巡航しいると、少し大きめの段差に2度続けて、バン ババン!!と。
段差に乗った瞬間にフロントのドラムが見事にロック致しました。路面に付いたとたんに当然スキッドしまくりです!!
あ〜どうしょう??事故にあった事のある皆様ならお分かりだと思います。突然スローモーション、
一瞬の間にいろんな事を人は考えます。面白い物です。もし転んだら私のヒーローEvel Knievelのように逆らわず転がるしかありません。


が、残念ながら見事に持ち直し下道でお店に戻りました。ここで転んでいればもっと面白かったのですが。。。すいません。




When I get back to my shop taking surface street(Yes, I was scared), I notice the fork was bent!! This tells you that the impact
on 91 was pretty big!

CFL Choppers For Life!!!
Unfortunatary every thing seems like Chinese For Life..... Very very very sad.....



とりあえずお店に戻ってみると、フロントエンドが曲がっております!?
よっぽど強い衝撃だったのね。

やはり Chopper が大好きであります。CFL Choppers For Life!!!

残念ながら世界は何もかもがChinese For Lifeの傾向にあります。とても残念です。
うちのお店では、安いからと云って中国製の工具や部品を買う事は極力避けています。
それでも中国製は、所どことに顔出します。。。やるせません。

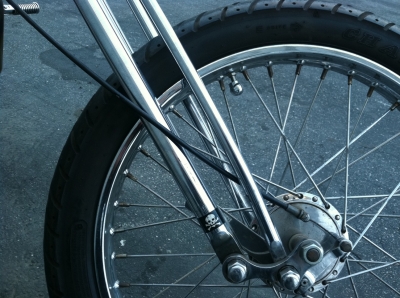

Front axle nut was just finger tight...

アクスルナットも指で回りました。。。。。



RIP.  You are the shzenit!!

私の永遠のヒーローEvel Knievel!! 安らかにおやすみなさい!!


2011.03.18 Friday

Jason's 71 XLH

It's about time to work on his sporty again. I will split the cases tonight!! So far this motor is pretty reasonable.

さてJasonから最近良く電話があります。。。進めないと。。。いつものパターンでお客さんにガブリ寄られるはめになります。

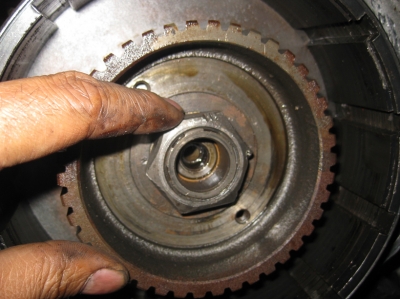

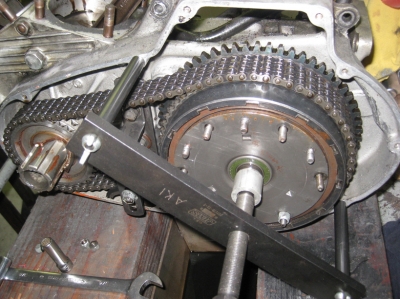

Clutch hub nut is finger loose!

ソケット要らず、指で緩みます。やり易いです!

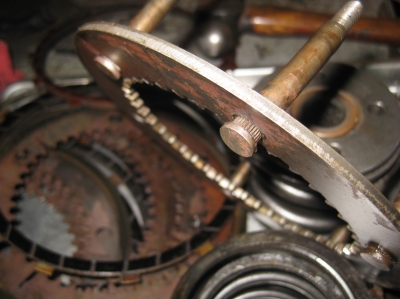

They are loose as well...

ここもユルユルです。

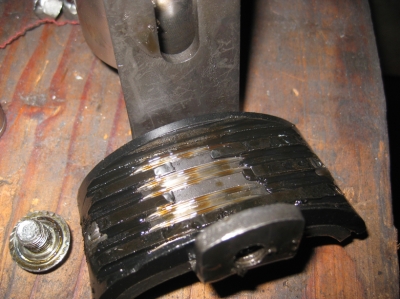

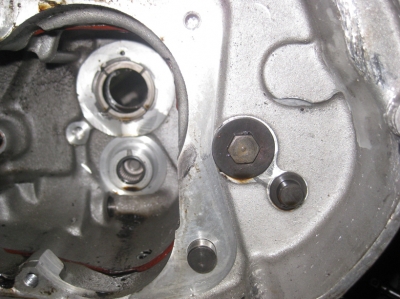

The chain adjuster shoe wore down to metal and primary chain got loose.

チェーンのシューはメタル迄すり減っております。

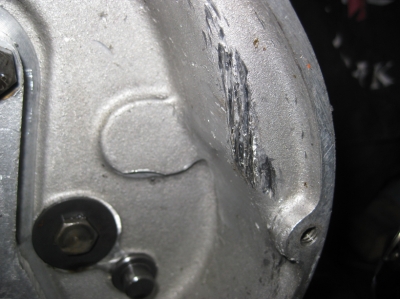

Ouch! Loose chain??

何がかガリガリしてたんでしょうね?チェーンかな?

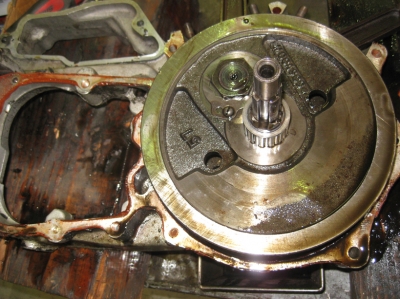

Let's take transmission out. The book says..

ミッションを取り外します。当然マニュアルには....


But in reality...

でも実際には.......







Little taps helps!

軽くtap tap!

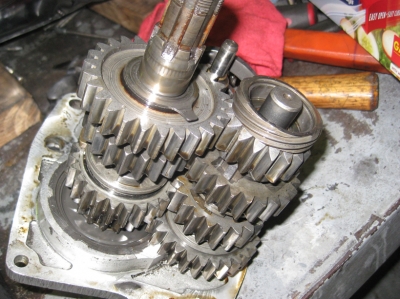

Now transmission is out. All the gears look good! I will take a closer look later. For now just keep taking it apart.

ミッションも無事に取り外し、パット見ギアのかけも無く程度良さそうですが、とりあえずバラし続けます。


We will add kicker on it, so need to get some parts.

キックを付けたいと奴は言います。

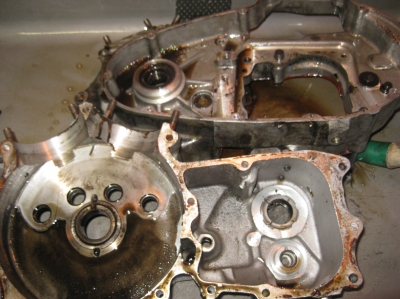

Split cases.

ケース迄割りました!




Clean them all up and we will inspect all the components. Easier to see them when it's clean...

奇麗に洗浄して点検しましょう。このままでは汚すぎてよく見えません。。。

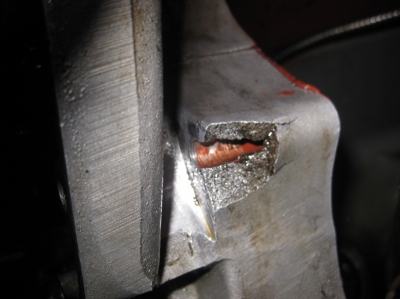

But I coud see this no problem. Ughh... Broken front motor mount....

あらら、こちらは洗わずにでも分かります。いや〜割れとります。まあこれ位は無いとやりがいは無いのかな?


2011.03.14 Monday

Ian's Sporty

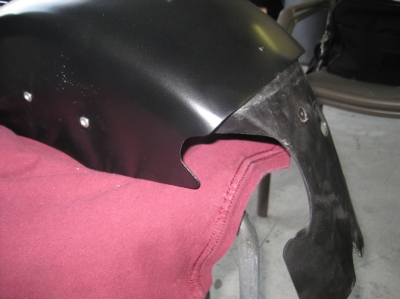

Splash guard is rivetted back to the fender. It doesn't look mutch but it has its own purpose.




Hooks are for skate board.

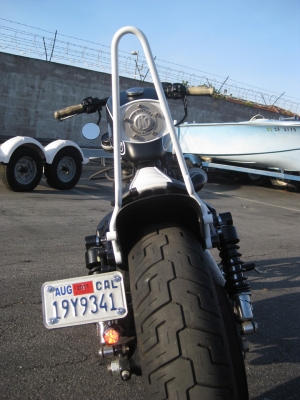

We mounted tail light under the license plate.



Shop logo in the middle.

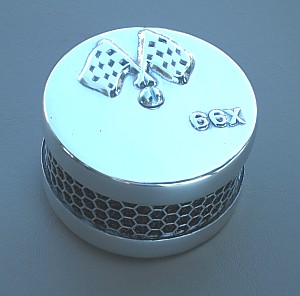

Modified Chopper Dave air cleaner!

Here is his awsome air cleaner.


Awesommer!! Good guy's bike.




Ian the 99%ER!!


2011.03.11 Friday

Ian's Sporty

This is the fun part!

楽しいパテ盛りの時間です。


Not really..

実際にはあんまり楽しくありませんが。。。


Not at all actually....

やり始めたからには終わらせないと。。。



But almost done!

もう少し!



And frame needs some touch up too.

フレームも


Mask it and

チャチャッとマスキンングして、


Paint it!

ササッと塗っちゃいます!
2011.03.11 Friday

Dan's Pan Gas Tank 4

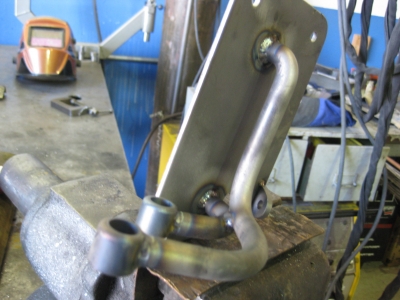

New gas filler and vent tube.

今回使うガスキャップ、バング、ベントチューブです。


In and

ここから入って


Out

ここに出ます。


Done for now, Dan will pick it up and bring back more shiit....

とりあえずここ迄です。又行き詰まったら助けを求めに現れる筈です。






See you soon!

又ね!

2011.03.10 Thursday

Mike's Softail

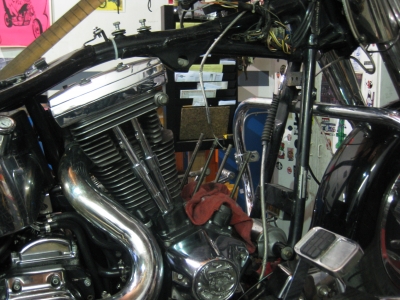

 It was smoking like a chimunee from front cylinder. So let's check it out!

又マイクのバイクです、前回はイグニッション、今回はフロントから煙吐きまくっています。

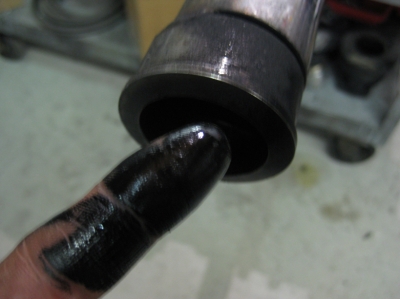

End of front exhaust pipe. Nice and wet.....

ズルっと濡れております。。。

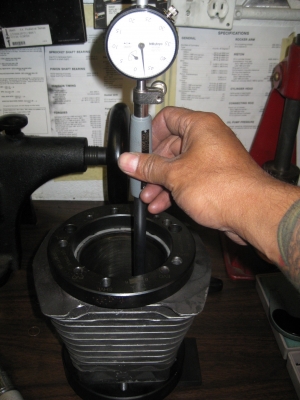

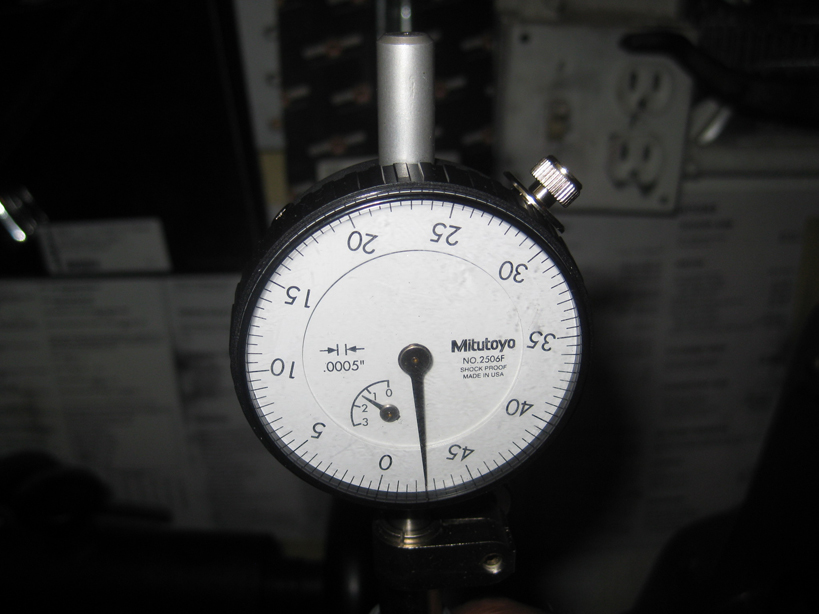

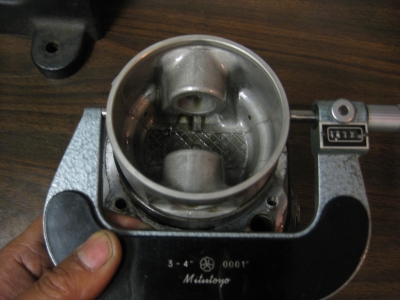

Cylinder head seemed OK, it's time to check out the Clearance between pistons and cylinders.


ヘッドは見た目問題無さそうだったので、とりあえずピストンクリアランスでも計ってみましょう。



Service limit is .0053, so its not the problem. So it might be burinig return oil through the head casket?? It didn't look that bad...May be piston ring direction??




.0025"サービスリミットの半分以下。これじゃない様です、ヘッドガスケットからリターンオイル吸ってるのでしょうか?ringが逆さまって事は無いよね??


2011.03.06 Sunday

Ian's Sporty 2

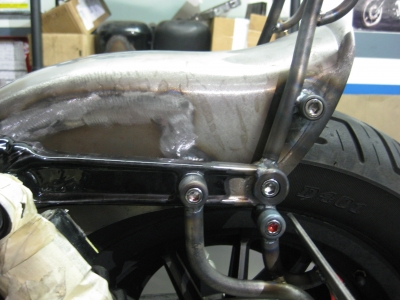

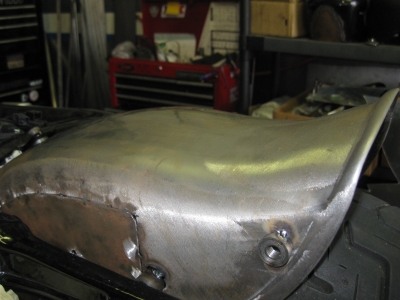

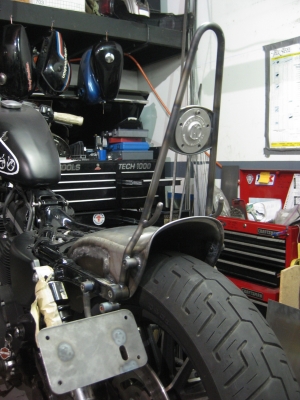

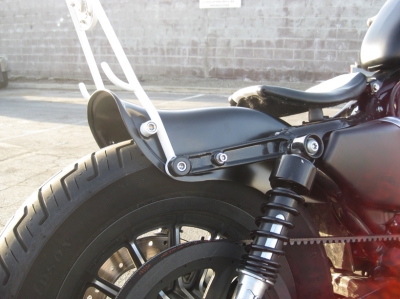

Now the fender is mounted to the frame and there are bungs for sissy bars.

こんな感じになりました。後方に見えるバングはシシーバー取り付けようです。



Also, we can't forget about licence plate and tail light.... This bike came with Filp-Out plate and bigger tail light.

テールライトとライセンスプレートのマウントもフレームにボルトーオンです。テールライトも小さめに。

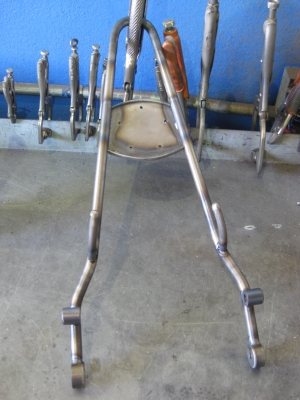

Sissy bars are being welded. Hopefully the fit??

シシーバーの溶接を仕上げます。ひずまない事を願いながら。。。。

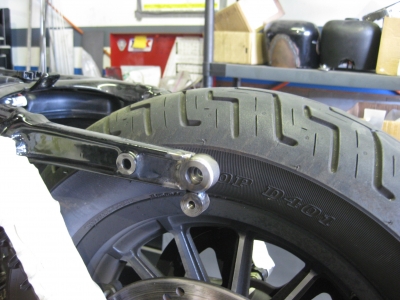

And licence bracket too...

ライセンスプレートも同様。


Making sure they all fit after being welded.
Left side view.

こんな感じに仕上がりました。


right side view.

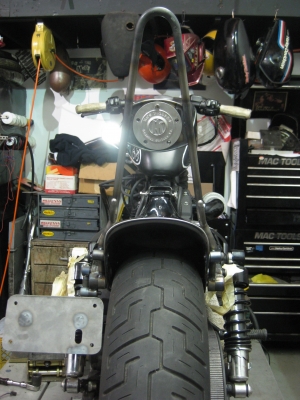

And rear view.


They all fit good. Now its ready for paint.


ほぼ完成!後は塗装です。
2011.03.06 Sunday

Dan's Pan Gas Tank 3

 Back to Dan's gas tank. Patched the front part of the tank, now we can make some tabs! No more brazing!!

アディオス ブロンズ!



Side View.


Buttom.


We closed up the filler. We are relocating it to the middle.

真ん中にガスキャップを移動します。
